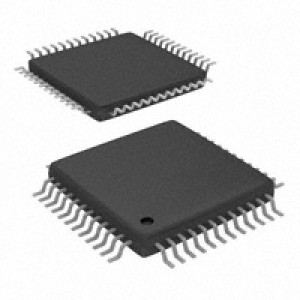

ATSAMD21G18A TQFP
Atmel® | SMART™ SAM D21 is a series of low-power microcontrollers using the 32-bit ARM® Cortex®-M0+ processor, and ranging from 32- to 64-pins with up to 256KB Flash and 32KB of SRAM. The SAM D21 devices operate at a maximum frequency of 48MHz and reach 2.46 CoreMark®/MHz. They are designed for simple and intuitive migration with identical peripheral modules, hex compatible code, identical linear address map and pin compatible migration paths between all devices in the product series. All devices include intelligent and flexible peripherals, Atmel Event System for inter-peripheral signaling, and support for capacitive touch button, slider and wheel user interfaces.
Features:
- ARM Cortex-M0+ CPU running at up to 48MHz
– 32/64/128/256KB in-system self-programmable Flash
– 4/8/16/32KB SRAM Memory
- One full-speed (12Mbps) Universal Serial Bus (USB) 2.0 interface
Resources:
Specifications:
Specification | Value |
Operating Voltage | 1.62V -> 3.63V |
Package Type | 48-Pin TQFP |
Maximum Frequency | 48MHz |
Flash Memory | 256kB |
SRAM | 32kB |
EEPROM | None |
ADC Channels | 14x 12 bit |
Timers | 5x 16bit, 3x 24bit |
DAC Channels | 1x 10bit |
Interface Type | I2C, SPI, UART, USART |
ATSAMD21G18A TQFP
- Brand: Atmel
- Product Code: ATSAMD21G18A-AUT
- Availability: Out Of Stock
-
R 80.99
- Ex Tax: R 70.43
-
- 10 or more R 75.00
