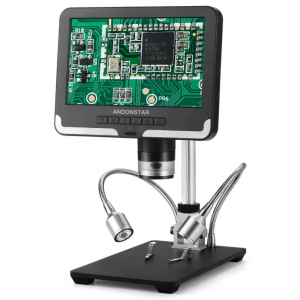

AD206 7inch HD Digital Microscope

The AD206 features 8 adjustable LED lights, a 7-inch adjustable display and a height-adjustable stand. The bracket, the LCD screen and the dual LED lights could be adjusted freely, which is easy to apply in various applications and brings 3D effect and larger operation space. With the UV filter and lens cover, the industrial-grade lens can be protected from heat, dust and high-temperature steam while doing soldering work or under other microscopic scenes. With up to 200X magnification and max 12M (4032x3024) photo resolution, it allows you to observe clearly minute things. The built-in image processing technology and IR remote could offer you a variety of presentations, and thus ensures the quality of your work in soldering, phone or watch repair, jewelry appraisal, etc.

Features:

• 7'' large adjustable display with a wide sphere of viewing and observation
• 2 fill lights and built-in 8 adjustable LED lights for comfortable observation
• With up to 200X magnification and max 12M (4032x3024) photo resolution
• With the protective UV filter and lens cover extending the service life of the microscope
• Height-adjustable stand to adjust the magnification and object distance
• High-quality image processing system with 2 megapixel HD sensor

Specifications:

• Image sensor: 2 Mega Pixels HD Sensor

• Video output: FHD 1920x1080 30FPS; 1080P 1440x1080 30FPS; 720P 1280x720 30FPS
• Video format: AVI
• Magnification: Up to 200 times
• Photo resolution: Max 12M（4032x3024)
• Photo format: JPG
• Focus range: 2cm-17cm
• Frame rate: Max 30FPS
• Storage: Micro-SD card, up to 32G
• Pc support: No
• Power source: 5V DC
• Light source: 2 LED fill lights
• Screen size: 7 inches
• Stand size: 20cm*12cm*19cm
• Certification: CE/FCC/ROHS
• Warranty: 1 year

Package Includes:

• Digital Microscope

• Metal stand
• Dimer switch
• IR remote control
• Power adaptor
• UV filter
• Lens cover
• Instructions

Resources:

• User Manual
