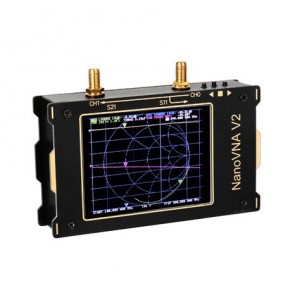

NanoVNA V2 3GHz T/R Vector Network Analyzer

See Alternative Version NanoVNA-F-V2

NanoVNA V2 (S-A-A-2) is a low cost 3GHz T/R vector network analyzer developed by HCXQS in collaboration with OwOComm. The V2 hardware is a new from-scratch design and is not based on the original NanoVNA by edy555.

Compared to the original NanoVNA, V2 does not use harmonics for measurements and achieves higher dynamic range.

Features:

• Frequency range: 50kHz - 3GHz
• Frequency resolution: 10kHz
• System dynamic range: 70dB f < 1.5GHz, 60dB f < 3GHz
• S11 noise floor: -50dB f < 1.5GHz, -40dB f < 3GHz
• Sweep rate: 200 points/s f >= 140MHz, 100 points/s f < 140MHz
• Sweep points (on device): 10- 201 points, adjustable
• Sweep points (USB): 1 - 1024 points, adjustable
• Power supply: USB, 4.6V - 5.5V
• Supply current: 400mA typ, 500mA max
• Battery current: 1.2A typ
• Battery capacity: 1940mAh
• Operating temperature: 0 - 45degC (by design)

Package Includes:

• 1x Vector Network Analyzer

• 2x 300mm RF Cable SS405 SMA Double Male
• 1x USB Data Cable
• 1x Calibration Kit (50ohm Load)
• 1x Calibration Kit (Short)
• 1x Calibration Kit (Open)
• 1x SMA Female to Female Connector

Resources:

• User Manual
• Software
• How to use a NanoVNA V2
