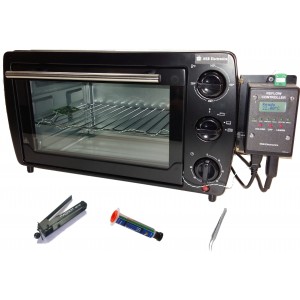

Reflow Oven with Controller Basic Kit (Discontinued)

See Reflow Controller V2 Full Kit (NSB063)

The Reflow Oven with Controller has been designed to assist hobbyists, technicians and engineers overcome the problems associated with prototype surface mount technology (SMT) assemblies. After the SMT components have been placed on the pcb, they are soldered all at once using the reflow oven.

The Reflow Controller constantly monitors the temperature inside the oven and using a PID control algorithm, tracks the reflow soldering profile ensuring components are not over heated or over stressed during the soldering process.

Features:

• Low cost

• Ideal for prototype and batch soldering

• 300x250mm PCB capacity

• Supplied with basic tools required for SMD assembly

• Plug-and-solder

• LCD display of temperature and state

• LED state indication

• USB connectivity for monitoring/controlling

• Optional RF connectivity (433MHz transceiver)


Included :

• 1x Reflow Controller unit

• 1x Oven mounting bracket

• 1x 1.8m 3 Pin Plug to IEC C13 Female cable

• 1x 1.0m K-Type temperature sensor

• 1x Compact Oven

• 1x 35g Solder Paste Tube

• 1x Solder Paste Dispenser

• 2x 1.2" Needle for Solder Paste

• 1x Tweezer

• 1x User Manual
